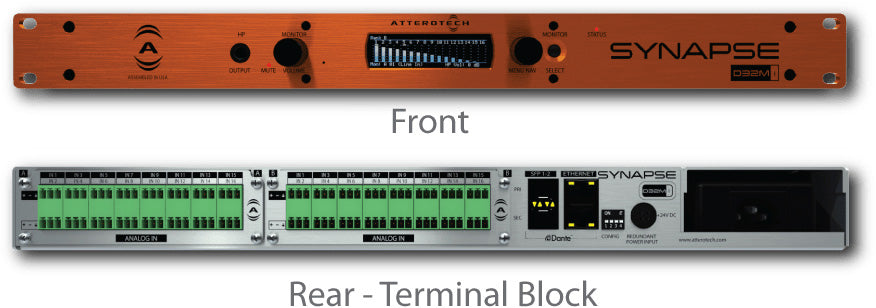

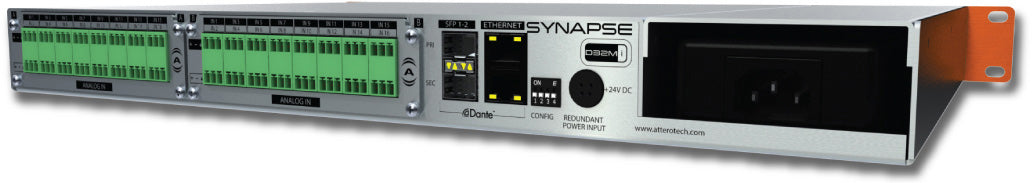

32 Channel Break In Interface, 1RUwith Phoenix

$100.00
SKU 900-00209-TB

This item is noncancelable and nonreturnable.

The Attero Tech SYNPASED32MI is a high performance, high channel density networked audio interface supporting Dante™ with AES67 interoperability. The D32Mi features 32 channels of studio grade microphone preamplifiers using THATCorporation mic preamp technology, with up to 51 dB of digitally controlled gain in 3 dB steps. Each mic input also supports P48 switchable phantom power and a switchable pad accommodation of pro line level inputs.

  • Features:

    • 32 balanced mic/line level inputs (studio-grade mic preamps) - either DB-25 or 3-Pin Phoenix
    • Redundant (primary/secondary or daisy chain) RJ-45 connectors and SFP (fiber) connectors
    • Individual channel selection and monitoring using the front panel headphone jack
    • Level metering on the front panel OLED display
    • Supports Dante and AES67

  • Specifications:

    • Analog Audio Inputs
    • Input Type:
      32: Balanced 3-pin line level (Terminal Block option)
      4: TASCAM-pinout compatible DB25 balanced analog (DB-25 option)
    • Input Impedance: 10 kΩ - Line Mode
    • Maximum Input Levels: +24 dBu (Pad Active - Line Mode) ±0.005%
    • THD+N: < 0.005% at -3 dBFS
    • Dynamic Range: > 105 dB
    • Frequency Response: 20-20kHz, +/- 0.5dB

      Headphone Output
    • Output Type Stereo headphone on +” TRS
    • Maximum output level 25mW into 32 Ω
    • THD+N < 0.01 % @ 25mW

      Dante Network
    • Physical Layer Ethernet
    • Connector (s) Dual RJ-45 / Dual SFP Slots
    • Cable Quality CAT-5e or better (Copper) / Fiber
    • Transmission Speed All interfaces 1 Gbps
    • Supported Sample Rates 44.1kHz /48kHz / 88.2 kHz / 96 kHz
    • Minimum Dante Network Latency 250 us
    • Supported Modes Redundant / Switched
    • AES67 Support Dante™ - AES67 Mode

      Power Specifications
    • AC Power 120V AC
    • Power Consumption < 20W Max
    • Cable Quality CAT-5e or better

      Regulatory Compliance
    • Certifications FCC CFR 47 Parts 15B Class A, EN55011, ICES-003
    • CE (EN55022 / EN55024), RoHS, REACH

      General
    • Operating Temperature: 32° to 104°F (0° to 40°C)
    • Dimensions (WxHxD): 19 x 1.75 (1 RU Form Factor) x 12.5"

  • Item Includes:

    • 1x Synpase D32Mi
    • 1x Phoenix Connectors
    • 1x Power Cord
