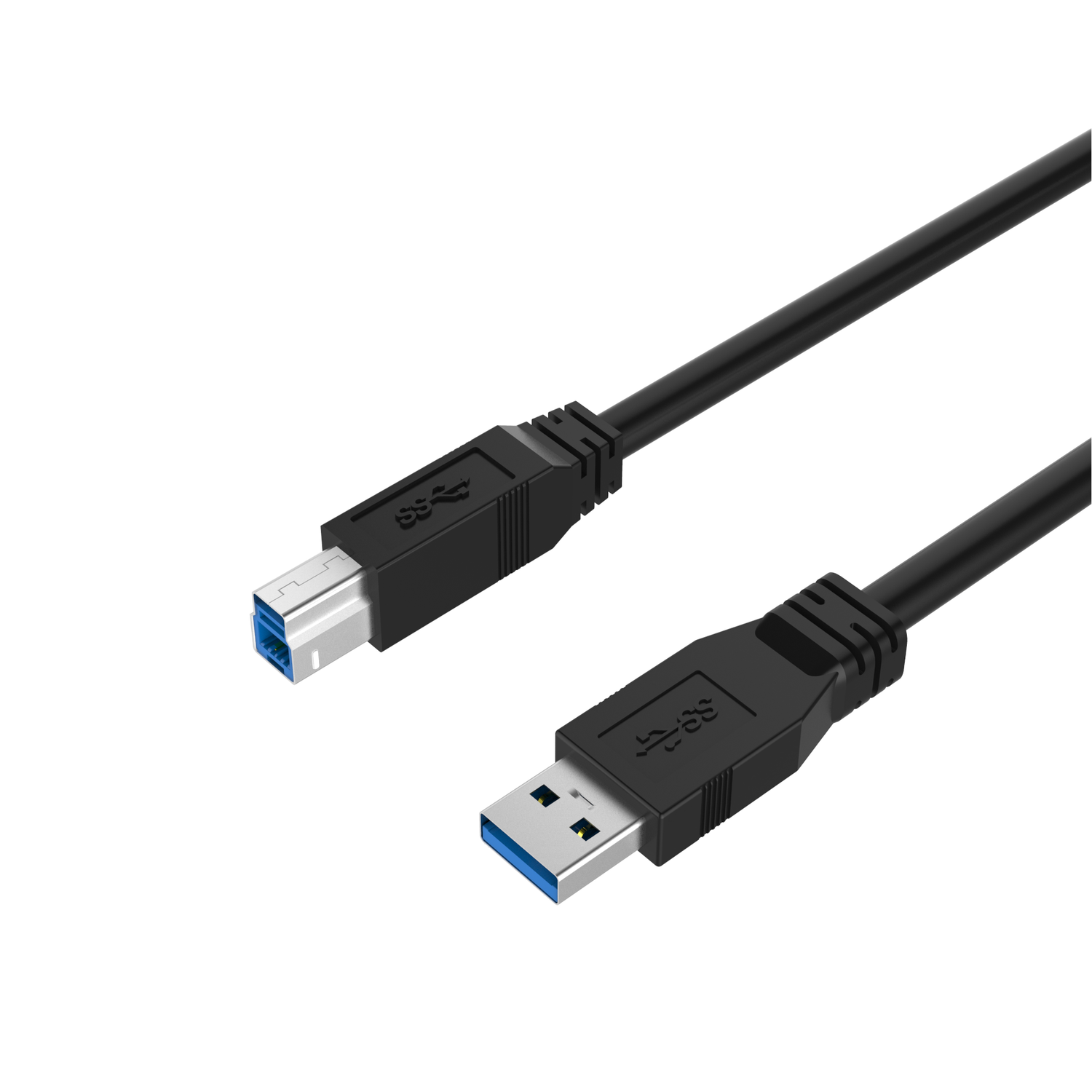

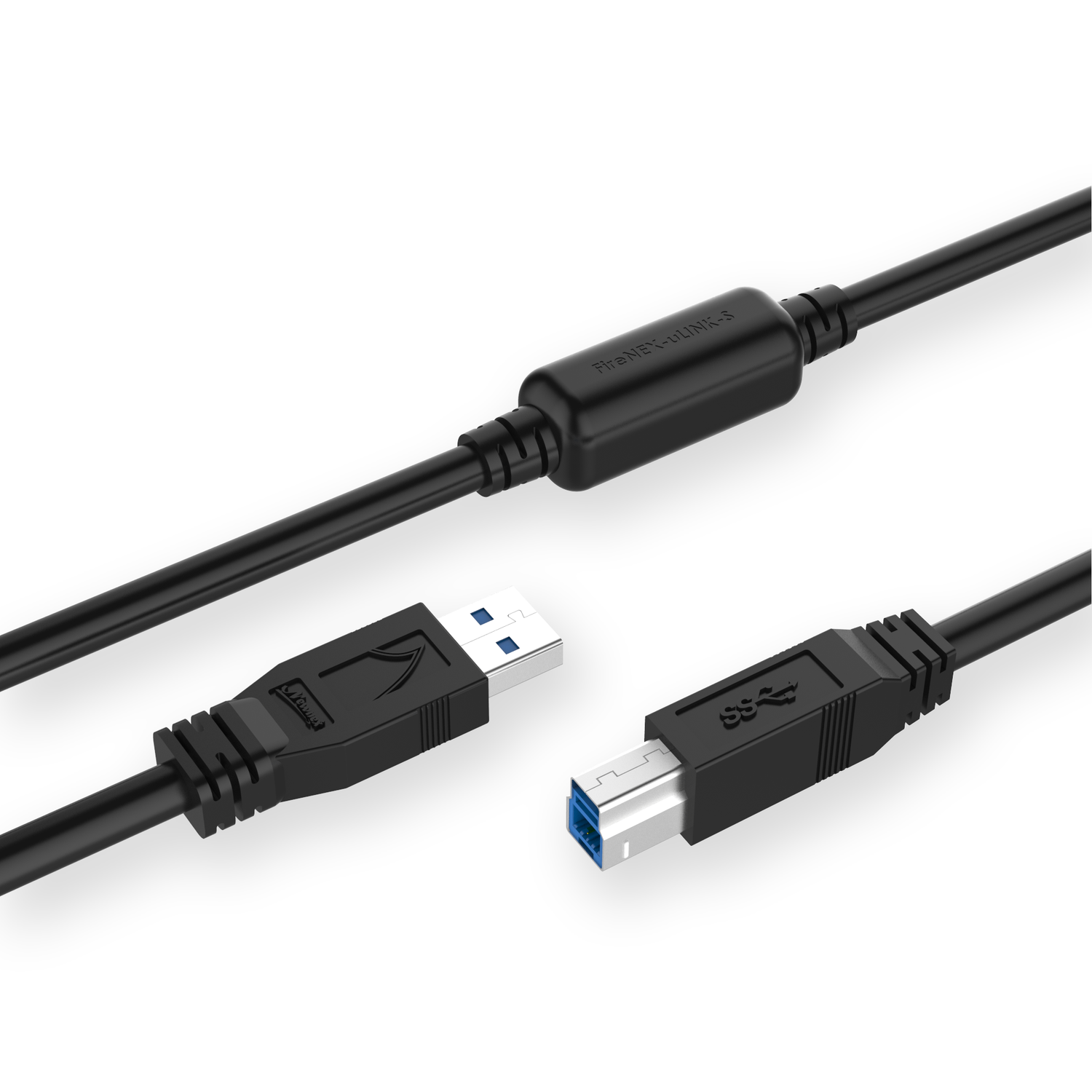

FireNEX-uLINK USB 3.0 Active Repeater Cable , A Male to B Male, 12 Meters, Slim Repeater

by Newnex
Sale
$165.00
$82.50
SKU FIRENEX-ULKS12

This item is nonreturnable and noncancelable.

  • Extends USB 3.0 up to 30 Meters with superior signal quality
  • Transfers SuperSpeed at data rate up to 5Gbps
  • USB 2.0 backward compatible
  • Plug and Play, no driver installation needed
  • Bus powered from host PC, no external power supply needed
  • Slim repeater box form factor, ideal for wall conduit
  • High flex life robotic cable option available
  • Ruggedized metal repeater case option available for better EMI shielding

Specifications:

EXTENSION RANGE
USB 3.0/USB 3.1 Gen 1
Up to 30m (98.4ft.)

DATA RATE
USB 3.0/USB 3.1 Gen 1
5 Gb/s
Backward Compatible USB 2.0
480 Mb/s

MECHANICAL
Repeater Box Dimension
16 x 16 x 40 mm (0.63 x 0.63 x 1.57”)
Cable Diameter
6.4 mm (0.27”)
Jacket Material
PVC, Black
USB Connector on Host Side
USB 3.0 Std-A(USB3 Vision Locking Connector Available)
USB Connector on Device Side
USB 3.0 Std-B(USB3 Vision Locking Connector Available)

POWER SUPPLY
Power Source
Bus Power
Available Power to Device
5V, up to 900mA

ENVRIONMENTAL
Operating Temperature
0°C to 70°C (32°F to 158°F)
Storage Temperature
-40ºC to 80ºC (-40ºF to 176ºF)
Operating Humidity
20% to 80% relative humidity, non-condensing
Storage Humidity
10% to 90% relative humidity, non-condensing

COMPLIANCE AND COMPATIBLITY
Connectivity
USB 3.0/USB 3.1 Gen 1, USB 2.0
Machine Vision
AIA USB3 Vision Compliant
EMC
FCC (Class B), CE (Class B)
Environmental
RoHS
Flammability
VW-1

SUPPORT
Warranty
1-year Manufacture Warranty
Please contact us for any questions regarding this product.
