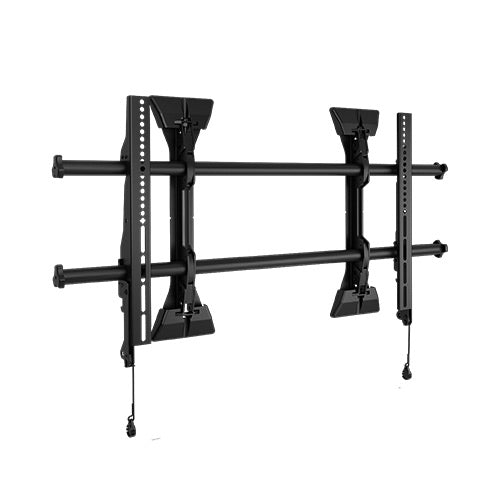

Chief Medium Fusion Micro-Adjustable Fixed Wall Mount

by Chief
$124.00
SKU CHIE-MSM1U

The Chief MSM1U has an integrated teardrop design that speeds up wall plate installation by allowing pre-installation of the bolts to the wall. The Centerless Shift provides up to 12.9" (327 mm) of post-installation lateral shift for limitless centering. Set screws keep the mount rigid, stable and secure throughout the life of the installation and the built-in cable stand provides easy access under the screen. Comes with exclusive nesting spacers can be stacked to achieve any depth. Also ships with a custom hardware kit that can be hung from mount rails if installing in stages.



Specifications:

  • Typical Screen Sizes: Typical Screen Sizes 32 - 65"
  • Wall Stud Compatibility In: 16" - 24" (406 mm - 610 mm)
  • Weight Capacity: 125lbs (56.7 kg)
  • Orientation: Landscape
  • Mounting Pattern Compatibility (Universal Versions): 100 x 100 mm - 642 x 400 mm
  • Overall Dimensions (H x W x D): 18.25 x 25.75 x 2" (464 x 654 x 51 mm)
  • Solution Type: Universal



Installation Manual
