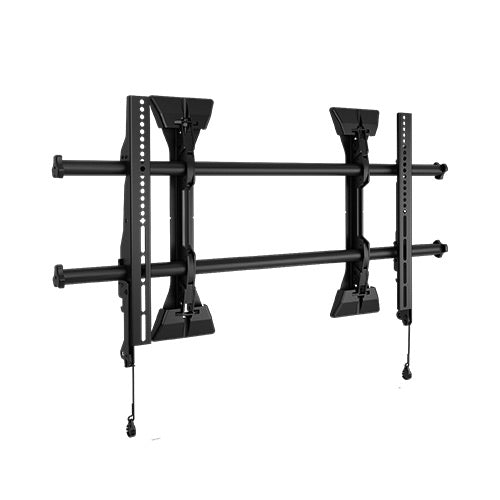

Chief Large Fusion Micro-Adjustable Fixed Wall Mount

by Chief

The Chief LSM1U has an integrated teardrop design that speeds up wall plate installation by allowing pre-installation of the bolts to the wall. The Centerless Shift provides up to 17.4" (441 mm) of post-installation lateral shift for limitless centering. Set screws keep the mount rigid, stable and secure throughout the life of the installation and the built-in cable stand provides easy access under the screen. Comes with exclusive nesting spacers can be stacked to achieve any depth. Also ships with a custom hardware kit that can be hung from mount rails if installing in stages.



  • Typical Screen Sizes: 42" - 86"
  • Wall Stud Compatibility In: 16" - 32" (406 mm - 813 mm)
  • Weight Capacity: 200 lbs (90.7 kg)
  • Orientation: Landscape
  • Mounting Pattern Compatibility (Universal Versions): 100 x 100 mm - 871 x 500 mm
  • Overall Dimensions (H x W x D): 18.25 x 34.75 x 2" (464 x 883 x 51 mm)
  • Solution Type: Universal


Installation Manual
