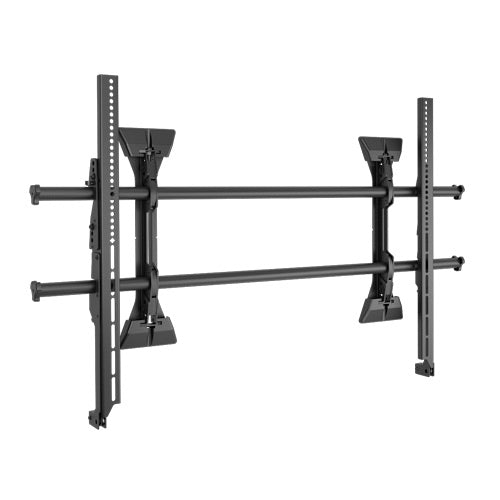

Chief X-Large Fusion Micro-Adjustable Fixed Wall Mount

by Chief
$193.00
SKU CHIE-XSM1U

The Chief XSM1U has an integrated teardrop design that speeds up wall plate installation by allowing pre-installation of the bolts to the wall. The Centerless Shift provides up to 17.4" (441 mm) of post-installation lateral shift for limitless centering. Set screws keep the mount rigid, stable and secure throughout the life of the installation and the built-in cable stand provides easy access under the screen. Comes with exclusive nesting spacers can be stacked to achieve any depth. Also ships with a custom hardware kit that can be hung from mount rails if installing in stages.

Specifications:

  • Lateral Shift:  21.4" (543 mm)
  • Manual Height Adjustment: 1" (25 mm)
  • Minimum Depth: 2.25" (57 mm)
  • Mounting Pattern Compatibility (Universal Versions): 100 x 100 mm - 1070 x 600 mm
  • Overall Dimensions:  (H x W x D)26.25 x 42.75 x 2.25" (667 x 1086 x 57 mm)
  • Solution Type:  Universal
  • Typical Screen Sizes:  55 - 82"
  • Wall Stud Compatibility In: 24" - 42" (610 mm - 1067 mm)
  • Weight Capacity: 250 lbs (113.4 kg)

Installation Manual
