4K60Hz 4:4:4 Streaming Transceiver with IPBaseT,

by Aurora
Sale
$974.25
$487.13
SKU IPX-TC2-F

This item is noncancelable and nonreturnable.

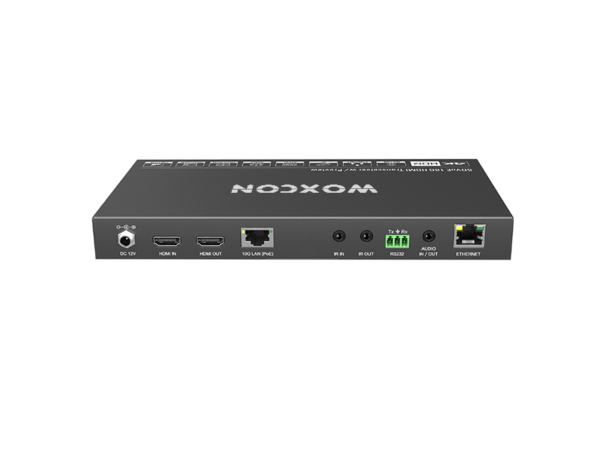

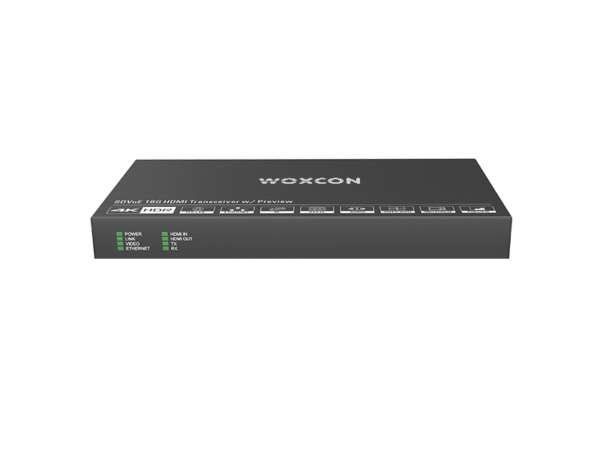

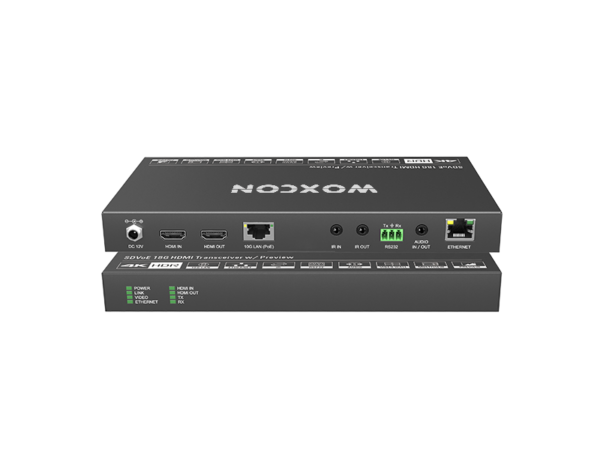

The IPA300TR/ IPA300TR-P features uncompressed video with zero-latency from transmitter to receiver, seamless switching, Video wall, Multi-view, 1G Ethernet, IR, RS232, audio embedding/de-embedding, audio down-mixing, etc. It can be controlled by the IPA Manager software.

The IPA300TR/ IPA300TR-P is a network AV Transceiver with HDMI input and output up to resolution 4K@60Hz 4:4:4, HDR. It is designed for HDMI transmission over IP network with external audio and control signals at distances up to 100m over CATx cable. It works with one control PC (Wake on LAN) and one 10GbE Switch to control a variety of functions.



Input
Video Input (1) HDMI
Video Input Connector (1) Type-A female HDMI
HDMI Input Resolution Up to 4Kx2K@60Hz 4:4:4 8bit
Audio Input (1) AUDIO
Audio Input Connector (1) 3.5mm jack
Output
Video Output (1) HDMI
Video Output Connector (1) Type-A female HDMI
HDMI Output Resolution Up to 4Kx2K@60Hz 4:4:4 8bit
Audio Output (1) AUDIO
Audio Output Connector (1) 3.5mm jack
General
Control (1) 10G LAN, (1) IR IN, (1) IR OUT, (1) RS232,
(1) ETHERNET
Control Connector (2) RJ45, (2) 3.5mm jack, (1) 3-pin terminal block
Power Consumption 18W (Max);
Operation Temperature -10℃ ~ +55℃
Storage Temperature -25℃ ~ +70℃
Relative Humidity 10%-90%
Dimension (W*H*D) 230.0mm x 25mm x 120.0mm
Net Weight 0.85KG



Please contact us for any questions regarding this product.
