This item is nonreturnable and noncancelable.

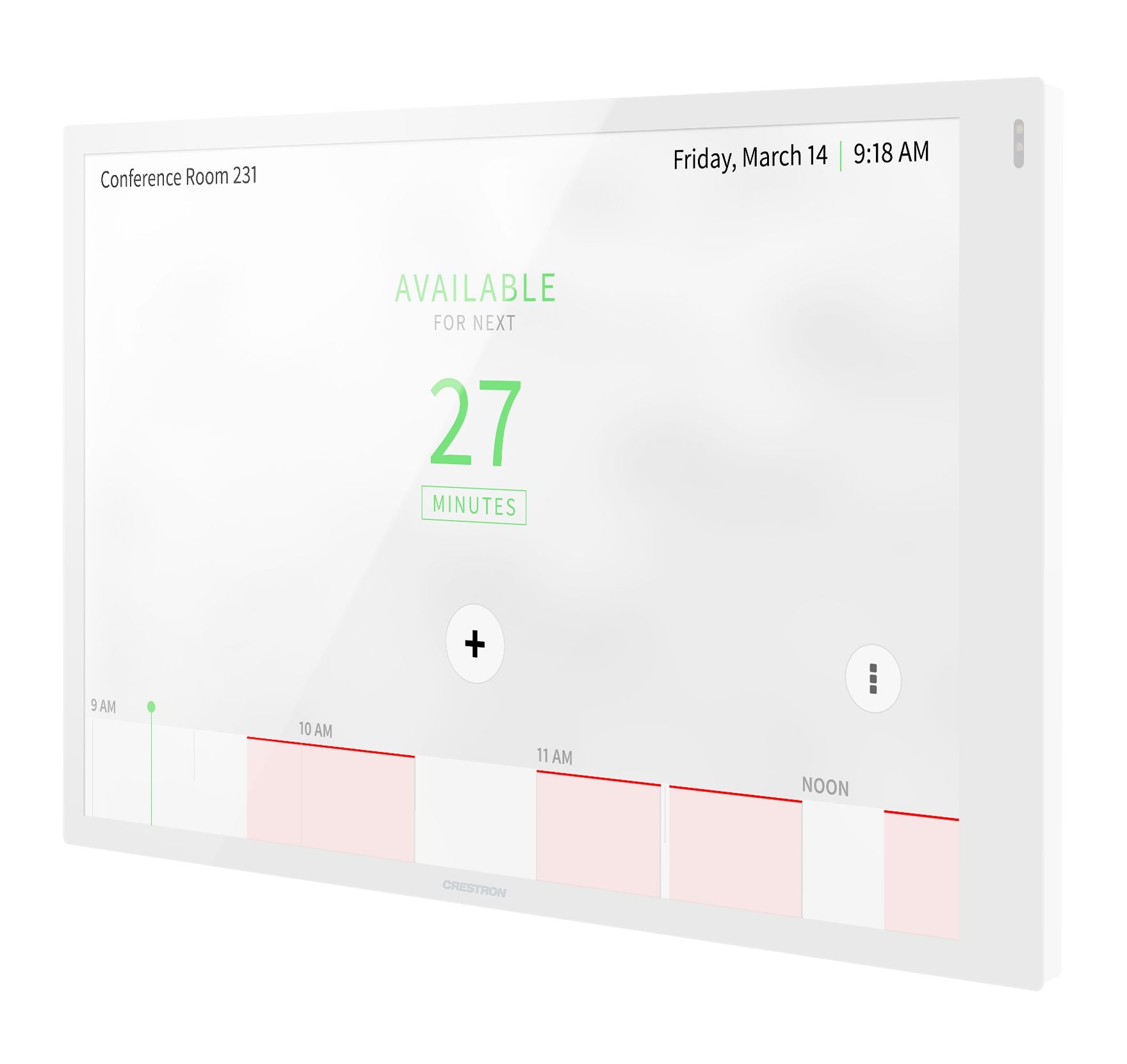

A stylish and versatile wall mount touch screen designed specifically for enterprise room scheduling applications. Integrates directly with various room scheduling services. Installs quickly and easily, with simple web-based configuration and cloud-based management and requires no control system or programming.
Crestron Room Scheduling App
The native Crestron Scheduling app helps organizations to maximize productivity and manage usage for every meeting space. If desired, the room can be reserved on the spot for an ad hoc meeting. A CEN‑ODT‑C‑POE occupancy sensor (sold separately) can also be paired to the touch screen, allowing for occupancy status to be reported instantly to the scheduling app for no‑shows and unscheduled room usage.
Specifications
| Room Scheduling Support | |
| Crestron Scheduling App | Crestron Fusion® software, Microsoft Exchange Server® and Office 365® software, Google Calendar™ and G Suite™ software, CollegeNET® 25Live® software, and Ad Astra™ software (IBM® Notes® software is also supported through Crestron Fusion on-premises server only) |
| Third-Party Apps | Includes support for various third-party scheduling applications.1,2,3 |
| Languages | |
| Crestron Fusion | Chinese (Simplified), Chinese (Traditional), Danish, Dutch (Netherlands), English (US), English (UK), French, German, Hebrew, Italian, Japanese, Korean, Norwegian, Portuguese (Brazil), Portuguese (Portugal), Russian, Spanish, Swedish |
| Wired Communications | |
| Ethernet | 100 Mbps, auto switching, auto negotiating, auto discovery, full/half duplex, TCP/IP, UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), IEEE 802.1X, SNMP, IPv4 or IPv6, Active Directory® service authentication, HTTPS web browser setup, Crestron XiO Cloud® client, IEEE 802.3at compliant |
| USB | USB 2.0 host for light bar or hallway sign4 |
| Wireless Communications | |
| Transceiver | IEEE 802.11a/b/g/n/ac Wi-Fi (2.4 or 5 GHz 2-way RF), static IP or dynamic IP via DHCP |
| Security | 64 and 128-bit WEP, WPA and WPA2-PSK with TKIP and AES |
| Range | Up to 50 ft (15 m), subject to site-specific conditions |
| Bluetooth® Hardware | Crestron Bluetooth beacon5 |
| Touch Screen Display | |
| Display Type | TFT active matrix color LCD |
| Size | 10.1 in. (257 mm) diagonal |
| Aspect Ratio | 16:10 WUXGA |
| Resolution | 1920 x 1200 pixels |
| Brightness | 400 nits (cd/m²) |
| Contrast | 1000:1 |
| Color Depth | 24 bit, 16.7M colors |
| Illumination | Edgelit LED with auto brightness control |
| Viewing Angle | ±80° horizontal, ±80° vertical |
| Touch Screen | Projected capacitive, 5-point multitouch capable |
| Buttons | |
| Hard Keys | (6) Virtual buttons in collapsible universal tool bar, per‑button show/hide, preconfigured with icons for Power, Home, Lights, Up, Down, and Microphone |
| Reset | (1) Pin hole on rear panel for hardware reset |
| Audio | |
| Features | Built-in speakers for touch feedback and alerts |
| Connectors | |

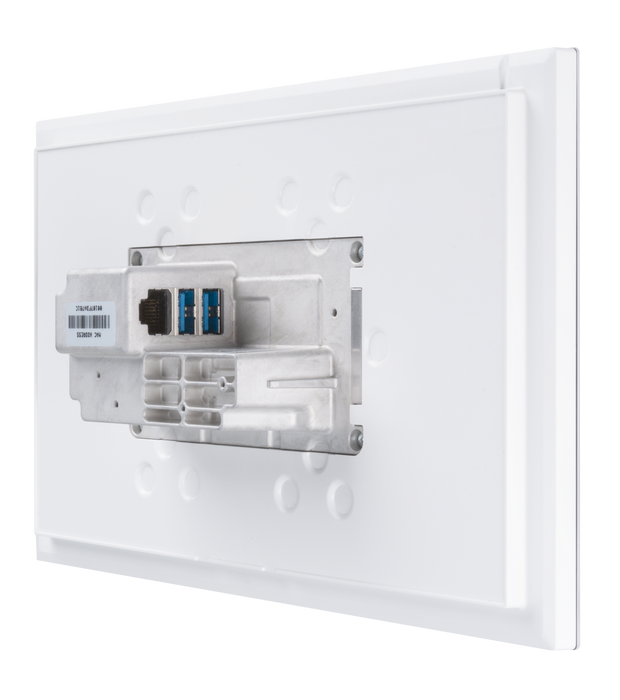

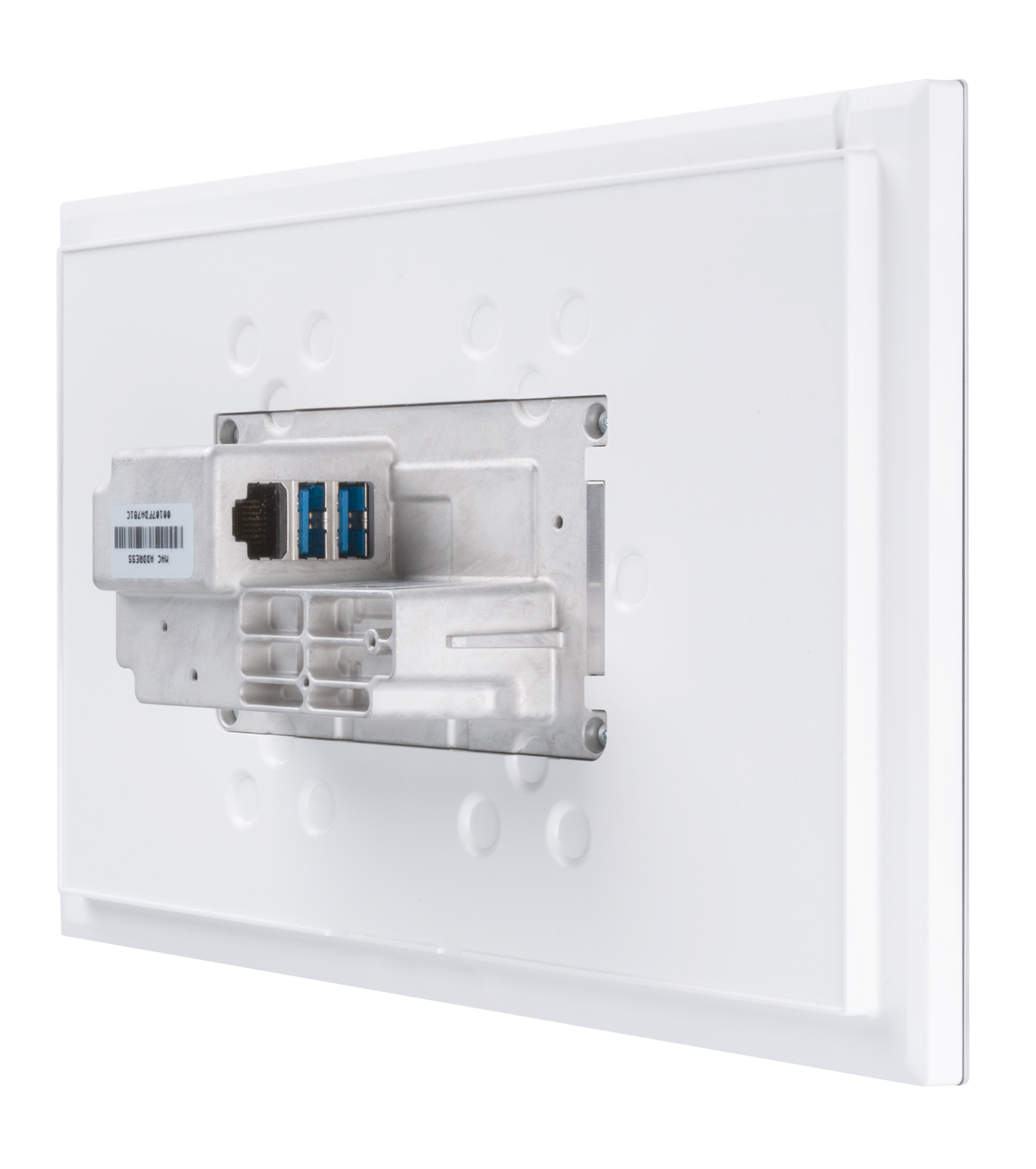

| LAN PoE | (1) 8-pin RJ45 connector, female, with 2 LED indicators; 100Base-TX Ethernet port; PoE+ PD port; Green and yellow LEDs indicate Ethernet port status |
| USB | (2) USB Type A connectors, female; USB 2.0 host ports; For optional room scheduling accessories |
| NOTE: The touch screen supports the use of a single light bar or status indicator accessory. | |
| Power | |
| PoE (Power over Ethernet) | IEEE 802.3at Type 2 compliant PoE+ PD (Powered Device); - Normally requests 15 W from an 802.3at Type 2 PSE with LLDP advanced power management; - With room scheduling and USB enabled, requests 18 W from an 802.3at Type 2 PSE with LLDP; - Requests 30 W (PoE+ Class 4) from an 802.3at Type 2 PSE without LLDP; - Requests 15.4 W (PoE Class 0) from an 802.3af (or 802.3at Type 1) PSE NOTE: Enabling the USB port requires use of an 802.3at Type 2 PoE+ PSE. |
| Environmental | |
| Temperature | 32 to 104 °F (0 to 40 °C) |
| Humidity | 10% to 95% RH (noncondensing) |
| Heat Dissipation | 44 BTU/hr |
| Construction | |
| Housing | Plastic, smooth black or white finish, edge-to-edge glass with black or white surround |
| Mounting | Surface mount over a 2 or 3 gang US electrical box, 2 gang European (DIN 49073) electrical box, or 2 gang UK (BS 4662) electrical box; Lectern mount over a 2 in. H x 3 3/4 in. W (51 mm H x 96 mm W) cutout; 1-3/8 in. (35 mm) minimum mounting depth; Wall mount, surface mount, and rack options available separately |
| Dimensions | |
| Height | 5.87 in. (149 mm) |
| Width | 9.46 in. (240 mm) |
| Depth | 2.01 in. (51 mm) |
| Dimensions do not include the mounting bracket or add‑on accessories | |
| Weight | |
| 1.61 lb (730 g) | |
| Compliance | |
|
Regulatory Model: M201923003 IC, CE, FCC Part 15 Class B digital device |
|
