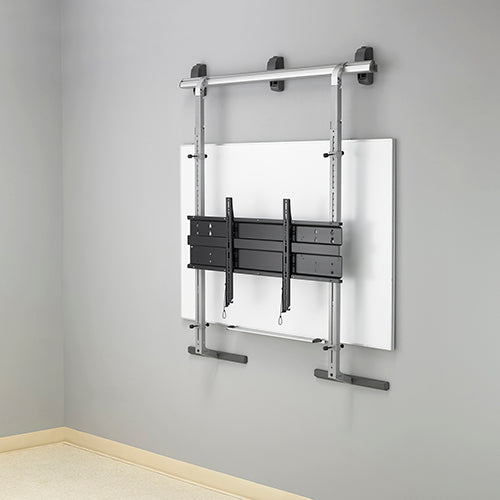

Over-the-Whiteboard Interactive Display Mount

by Chief
$449.00
SKU OB1U

The Over-the-Whiteboard Interactive Display Mount allows for easy installation and adjustment of heavy interactive flat panel displays over existing chalkboards or whiteboards. The mount comes largely pre-assembled with minimal hardware, reducing installation time. It also provides height variability to accommodate younger children or those seated at lower levels.

Key Features

  • Accommodates typical large displays between 50-80” and VESA® up to 1020 - 500 mm, to extend to VESA® 1020 x 600 mm specify FHB7036 bracket for M6 screws, or specify FHB7037 bracket for M8 screws.
  • Heavy-duty weight capacity of 310 lbs (140.6 kg)
  • Display height adjustment range of 26” (660 mm)
  • Interface brackets mount directly to display, then hang on single rail-style cross bracket, eliminating need to remove display from box prior to installation
  • Installs into various wall types (wood, concrete, steel, cinder-block)
  • Flexible wall assembly anchoring points ensure a minimum of two studs are used - three brackets for 16” on-center studs, or two brackets for 24” on-center studs are included
  • Integrated lateral shift allows for easy adjustment left or right
  • When installed, mount allows for a minimum of 4” (102mm) clearance from wall
  • Plumb adjustment up to 1.5° to compensate for uneven walls
  • Telescoping legs allow mount to be adjusted easily around classroom obstacles



  • ColorSilver
  • Lateral Shift6-5/8” MIN to 10-5/8” MAX (168 - 269 mm)
  • Mounting Pattern Compatibility (Universal Versions)400 x 100 – 1020 x 500 mm (Specify FHB7036 or FHB7037 to extend to VESA 1020 x 600 mm)
  • NotesDisplay height range: 26” (660.4 mm)
  • Overall Dimensions (H x W x D)61.1-75.1 x 55.25 x 6.3” (155.2 – 190.8 x 140.3 x 16 cm)
  • Typical Screen Sizes42 - 100"
  • Weight Capacity310 lbs (140.6 kg)
  •
