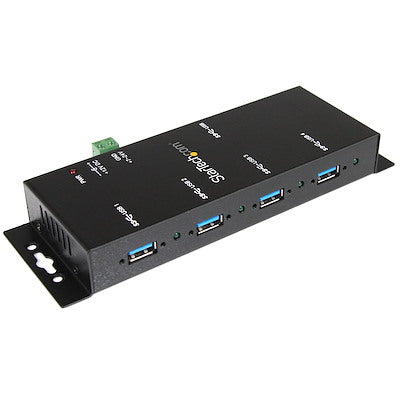

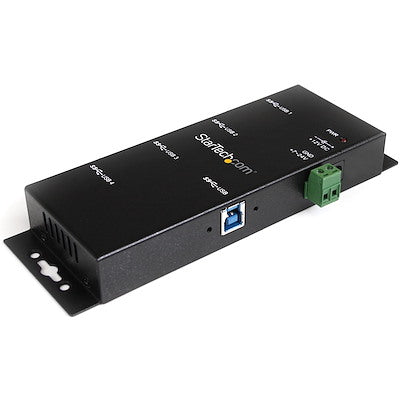

4-Port USB 3.0 Rugged Industrial SuperSpeed Hub Mountable

Sale
$70.99
$35.50
SKU ST4300USBM

This item in nonreturnable and noncancelable.

This TAA compliant 4-port industrial USB 3.0 hub gives you the scalability you need in harsh industrial environments, product and repair labs, conference rooms or office workstations. With its rugged industrial grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.

This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-24V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.

Perfect for factory environments, the rugged hub also supports a wide operating temperature range (0°C to 55°C) and offers ESD protection to each USB port, which can help prevent damage to your connected devices.

Specifications:

Warranty Information
Warranty
2 Years

Connector(s)
External Ports
4 - USB Type-A (9 pin, 5 Gbps)

1 - USB Type-B (9 pin) USB 3.0

1 - Terminal Block (2 Wire)

Environmental
Operating Temperature
0°C to 55°C (32°F to 131°F)
Storage Temperature
-20°C to 85°C (-4°F to 185°F)
Humidity
5~95% RH

Hardware
USB-C Device Port(s)
No
USB-C Host Connection
No
Fast-Charge Port(s)
No
Ports
4
Interface
USB 3.2 Gen 1 (5Gbps)
Bus Type
USB 3.2 Gen 1 (5Gbps)

USB 3.2 Gen 1 (5Gbps)
Chipset ID
VIA/VLI - VL817

Indicators
LED Indicators
1 - Power (Red)

4 - USB Device Connection (Green)

Packaging Information
Package Height
2.7 in [6.9 cm]
Package Length
7.5 in [19.1 cm]
Shipping (Package) Weight
2.6 lb [1.2 kg]
Package Width
11.6 in [29.5 cm]

Performance
Maximum Data Transfer Rate
5 Gbps
MTBF
245,881 Hours

Physical Characteristics
Form Factor
Industrial
Weight of Product
10.6 oz [301.0 g]
Color
Black
Material
Steel
Product Length
6.0 in [15.2 cm]
Product Width
2.3 in [6.0 cm]
Product Height
0.9 in [2.4 cm]

Power
Power Source
AC Adapter Included
Output Voltage
12V DC
Output Current
3A
Center Tip Polarity
Positive
Plug Type
M
Power Consumption (In Watts)
36

Software
OS Compatibility
OS Independent; No additional drivers or software required



Please contact us for any questions regarding this product.
